背景 在zuul网关中,有关于配置连接数量的配置:
1 2 3 4 zuul: host: max-per-route-connections: 20 max-total-connections: 200
这个是只是的zuul调用静态路由配置的Http连接池数量,按照实际情况设置就好(请注意不要和Tomcat的maxConnections搞混了)。
这个配置并不会对基于Ribbon的下游服务访问生效,如果要配置Ribbon相关的配置,需要配置以下的配置:
1 2 3 ribbon: MaxConnectionsPerHost: 50 MaxTotalConnections: 200
还有Feign的配置:
1 2 3 4 5 feign: httpclient: enabled: true max-connections: 200 max-connections-per-route: 50
那么问题来了,在服务中既有Feign,又有Ribbon,那如果都配置了,是用哪一个配置?仔细的分析了一下,情况还比较复杂。
zuul.host.max-per-route-connections 刚才说这个配置和基于RIbbon调用服务没有什么关系,放个证据看一下,SimpleHostRoutingFilter是用于静态路由的具体请求处理类,这里面的初始化代码就是读取这个参数,并进行连接池的配置。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 @PostConstruct private void initialize () { if (!customHttpClient) { this .connectionManager = connectionManagerFactory.newConnectionManager( !this .sslHostnameValidationEnabled, this .hostProperties.getMaxTotalConnections(), this .hostProperties.getMaxPerRouteConnections(), this .hostProperties.getTimeToLive(), this .hostProperties.getTimeUnit(), null ); this .httpClient = newClient(); this .connectionManagerTimer.schedule(new TimerTask() { @Override public void run () { if (SimpleHostRoutingFilter.this .connectionManager == null ) { return ; } SimpleHostRoutingFilter.this .connectionManager.closeExpiredConnections(); } }, 30000 , 5000 ); } }
Ribbon 服务里的Ribbon 先说在服务里只有Ribbon,并没有引入Feign的情况下,用RestTemplate发送请求,底层是通过SimpleBufferingClientHttpRequest发起实际http请求,用的是JDK原生的http。
所以在什么都不配置的情况下,上面的ribbon.MaxConnectionsPerHost
配置是没有用的,而且我从这个源码看下来,像那些重试参数什么的,应该都没有用。他仅仅只是给RestTemplate赋予了负载均衡的功能,其他什么都没有控制。
在RibbonClientConfiguration
类中,还额外Import了几个关于HttpClient的类,但是在默认情况下,都没什么用。
所以其实在服务里边,什么ribbon.okhttp.enable
,ribbon.httpclient.enable
,配置了以后,他只会去注册这些bean,不会被用到。自己搞的那个RestTemplate,用的就是spring默认的JDK 原生http组件。
结论 基于RestTemplate的方式使用Ribbon,在yaml里的大多数配置都不会生效,也没什么用。
网关里的Ribbon 在网关里面,大有不同,我们先看ZuulProxyAutoConfiguration配置类,他引入了几个跟http组件有关的配置类,在这里ribbon.okhttp.enable
,ribbon.httpclient.enable
就能直接起作用了,他决定了加载哪一个具体的配置。在没有okhttpclient的情况下,默认就是使用apache的httpcomponents。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 @Configuration @Import({ RibbonCommandFactoryConfiguration.RestClientRibbonConfiguration.class, RibbonCommandFactoryConfiguration.OkHttpRibbonConfiguration.class, RibbonCommandFactoryConfiguration.HttpClientRibbonConfiguration.class, HttpClientConfiguration.class }) @ConditionalOnBean(ZuulProxyMarkerConfiguration.Marker.class) public class ZuulProxyAutoConfiguration extends ZuulServerAutoConfiguration { ....... @Configuration @ConditionalOnRibbonHttpClient protected static class HttpClientRibbonConfiguration { @Autowired(required = false) private Set<ZuulFallbackProvider> zuulFallbackProviders = Collections.emptySet(); @Bean @ConditionalOnMissingBean public RibbonCommandFactory<?> ribbonCommandFactory( SpringClientFactory clientFactory, ZuulProperties zuulProperties) { return new HttpClientRibbonCommandFactory(clientFactory, zuulProperties, zuulFallbackProviders); } } @Override public HttpClientRibbonCommand create (final RibbonCommandContext context) { ZuulFallbackProvider zuulFallbackProvider = getFallbackProvider(context.getServiceId()); final String serviceId = context.getServiceId(); final RibbonLoadBalancingHttpClient client = this .clientFactory.getClient( serviceId, RibbonLoadBalancingHttpClient.class); client.setLoadBalancer(this .clientFactory.getLoadBalancer(serviceId)); return new HttpClientRibbonCommand(serviceId, client, context, zuulProperties, zuulFallbackProvider, clientFactory.getClientConfig(serviceId)); }
同时,Ribbon本身也会对RibbonClientConfiguration
配置类也进行初始化,一样的,他也引入了几个Http组件,和上面不同的是,zuul的几个配置类,主要是为了封装Hystrix的逻辑,实际上最终还是调用的RibbonLoadBalancingHttpClient
执行请求。所以我们接下来去看RibbonClientConfiguration
的配置,以及RibbonLoadBalancingHttpClient
是如何被注册的。
1 2 3 4 5 6 @Import({HttpClientConfiguration.class, OkHttpRibbonConfiguration.class, RestClientRibbonConfiguration.class, HttpClientRibbonConfiguration.class}) public class RibbonClientConfiguration { ..... }
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 @ConditionalOnClass(name = "org.apache.http.client.HttpClient") @ConditionalOnProperty(name = "ribbon.httpclient.enabled", matchIfMissing = true) public class HttpClientRibbonConfiguration { @Bean @ConditionalOnMissingBean(HttpClientConnectionManager.class) public HttpClientConnectionManager httpClientConnectionManager ( IClientConfig config, ApacheHttpClientConnectionManagerFactory connectionManagerFactory) { Integer maxTotalConnections = config.getPropertyAsInteger( CommonClientConfigKey.MaxTotalConnections, DefaultClientConfigImpl.DEFAULT_MAX_TOTAL_CONNECTIONS); Integer maxConnectionsPerHost = config.getPropertyAsInteger( CommonClientConfigKey.MaxConnectionsPerHost, DefaultClientConfigImpl.DEFAULT_MAX_CONNECTIONS_PER_HOST); ..... } @Bean @ConditionalOnMissingBean(CloseableHttpClient.class) public CloseableHttpClient httpClient (ApacheHttpClientFactory httpClientFactory, HttpClientConnectionManager connectionManager, IClientConfig config) { Boolean followRedirects = config.getPropertyAsBoolean( CommonClientConfigKey.FollowRedirects, DefaultClientConfigImpl.DEFAULT_FOLLOW_REDIRECTS); Integer connectTimeout = config.getPropertyAsInteger( CommonClientConfigKey.ConnectTimeout, DefaultClientConfigImpl.DEFAULT_CONNECT_TIMEOUT); RequestConfig defaultRequestConfig = RequestConfig.custom() .setConnectTimeout(connectTimeout) .setRedirectsEnabled(followRedirects).build(); this .httpClient = httpClientFactory.createBuilder(). setDefaultRequestConfig(defaultRequestConfig). setConnectionManager(connectionManager).build(); return httpClient; } @Bean @ConditionalOnMissingBean(AbstractLoadBalancerAwareClient.class) @ConditionalOnMissingClass(value = "org.springframework.retry.support.RetryTemplate") public RibbonLoadBalancingHttpClient ribbonLoadBalancingHttpClient ( IClientConfig config, ServerIntrospector serverIntrospector, ILoadBalancer loadBalancer, RetryHandler retryHandler, CloseableHttpClient httpClient) { RibbonLoadBalancingHttpClient client = new RibbonLoadBalancingHttpClient(httpClient, config, serverIntrospector); client.setLoadBalancer(loadBalancer); client.setRetryHandler(retryHandler); Monitors.registerObject("Client_" + this .name, client); return client; } }
我在网关打断点测试了一下,请求确实是通过RibbonLoadBalancingHttpClient执行的。
结论 基于网关使用Ribbon,会读取ribbon.MaxTotalConnections
和ribbon.MaxConnectionsPerHost
等配置,并给予HTTPComponents组件进行访问。
Feign 那么Fiegn的配置在什么时候生效?情况又有变化了,Feign同样有一个配置类FeignRibbonClientAutoConfiguration
1 2 3 4 5 6 7 8 @Import({ HttpClientFeignLoadBalancedConfiguration.class, OkHttpFeignLoadBalancedConfiguration.class, DefaultFeignLoadBalancedConfiguration.class }) public class FeignRibbonClientAutoConfiguration { .... }
默认情况 在默认没有额外配置的情况下,是读取的DefaultFeignLoadBalancedConfiguration
1 2 3 4 5 6 7 8 9 10 11 @Configuration class DefaultFeignLoadBalancedConfiguration { @Bean @ConditionalOnMissingBean public Client feignClient (CachingSpringLoadBalancerFactory cachingFactory, SpringClientFactory clientFactory) { return new LoadBalancerFeignClient(new Client.Default(null , null ), cachingFactory, clientFactory); } }
Feign在默认情况下使用的是JDK原生的URLConnection
发送HTTP请求,没有连接池,但是对每个地址会保持一个长连接,即利用HTTP的persistence connection
。
结论 在默认情况下,也就是不开启feign.okhttp.enable
和feign.httpclient.enable
的时候,feign的feign.max-connections
配置,也是没有什么用的。
HttpClient 在开启feign.httpclient.enable
以后,HttpClientFeignLoadBalancedConfiguration会被加载。这里得加个依赖:
1 2 3 4 5 <dependency > <groupId > com.netflix.feign</groupId > <artifactId > feign-httpclient</artifactId > <version > ${feign-httpclient}</version > </dependency >
和Ribbon一样,Feign也定义了自己的HttpClient等组件,在定义过程中,读取了配置并利用。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 @Configuration @ConditionalOnClass(ApacheHttpClient.class) @ConditionalOnProperty(value = "feign.httpclient.enabled", matchIfMissing = true) class HttpClientFeignLoadBalancedConfiguration { @Bean @ConditionalOnMissingBean(HttpClientConnectionManager.class) public HttpClientConnectionManager connectionManager ( ApacheHttpClientConnectionManagerFactory connectionManagerFactory, FeignHttpClientProperties httpClientProperties) { final HttpClientConnectionManager connectionManager = connectionManagerFactory .newConnectionManager(httpClientProperties.isDisableSslValidation(), httpClientProperties.getMaxConnections(), httpClientProperties.getMaxConnectionsPerRoute(), httpClientProperties.getTimeToLive(), httpClientProperties.getTimeToLiveUnit(), registryBuilder); this .connectionManagerTimer.schedule(new TimerTask() { @Override public void run () { connectionManager.closeExpiredConnections(); } }, 30000 , httpClientProperties.getConnectionTimerRepeat()); return connectionManager; } @Bean @ConditionalOnMissingBean(Client.class) public Client feignClient (CachingSpringLoadBalancerFactory cachingFactory, SpringClientFactory clientFactory, HttpClient httpClient) { ApacheHttpClient delegate = new ApacheHttpClient(httpClient); return new LoadBalancerFeignClient(delegate, cachingFactory, clientFactory); } }

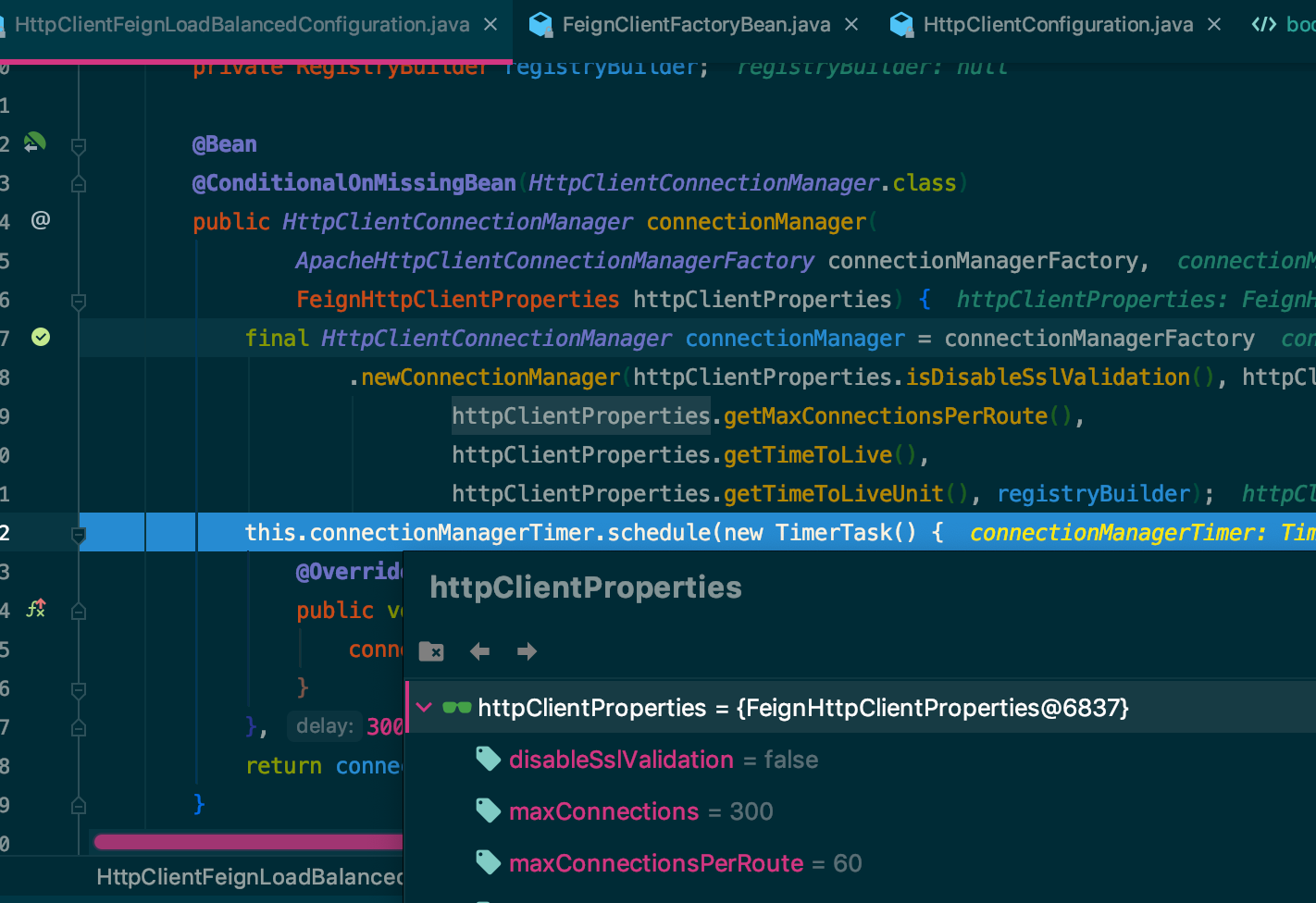

经过打了断点测试和验证, 确实在这里加载到了连接池的配置。请求也是通过ApacheHttpClient发送的。
结论 在引入了feign-httpclient的包以后,feign才会启用feign.max-connections
等连接池的配置。那么Ribbon之前的配置呢,在使用Feign的时候,Ribbon的那些Http相关的Bean就没有用了,不会被用到。
OkHttp 和上面一样,不过OkHttp只会读取MaxTotalConnections属性
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 @Bean @ConditionalOnMissingBean(ConnectionPool.class) public ConnectionPool httpClientConnectionPool (IClientConfig config, OkHttpClientConnectionPoolFactory connectionPoolFactory) { Integer maxTotalConnections = config.getPropertyAsInteger( CommonClientConfigKey.MaxTotalConnections, DefaultClientConfigImpl.DEFAULT_MAX_TOTAL_CONNECTIONS); Object timeToLiveObj = config .getProperty(CommonClientConfigKey.PoolKeepAliveTime); Long timeToLive = DefaultClientConfigImpl.DEFAULT_POOL_KEEP_ALIVE_TIME; Object ttlUnitObj = config .getProperty(CommonClientConfigKey.PoolKeepAliveTimeUnits); TimeUnit ttlUnit = DefaultClientConfigImpl.DEFAULT_POOL_KEEP_ALIVE_TIME_UNITS; if (timeToLiveObj instanceof Long) { timeToLive = (Long) timeToLiveObj; } if (ttlUnitObj instanceof TimeUnit) { ttlUnit = (TimeUnit) ttlUnitObj; } return connectionPoolFactory.create(maxTotalConnections, timeToLive, ttlUnit); }
总结 关于这个值应该怎么设置,大家根据自己的项目情况来设置,其实就是访问其他服务的Http连接池数量,不要设置的过于夸张了,有些人可能会跟Tomcat的maxconnections搞混了,甚至配个几千上万的,虽然名字一样,但是含义却不同。SpringBoot给我们设置的默认值,也是有参考意义的,在实际项目中,大家可以根据压测情况进行调整。
Tomcat:maxConnections 关于Tomcat这个参数的详细解释,可以看这个博客:https://blog.csdn.net/zzzgd_666/article/details/88740198。
大概说一下,Tomcat有Nio、Bio、APR三种运行模式,maxConnections是Tomcat在任意时刻接收和处理的最大连接数。当Tomcat接收的连接数达到maxConnections时,Acceptor线程不会读取accept队列中的连接;这时accept队列中的线程会一直阻塞着,直到Tomcat接收的连接数小于maxConnections。如果设置为-1,则连接数不受限制。
默认值与连接器使用的协议有关:NIO的默认值是10000,APR/native的默认值是8192,而BIO的默认值为maxThreads(如果配置了Executor,则默认值是Executor的maxThreads)。
在windows下,APR/native的maxConnections值会自动调整为设置值以下最大的1024的整数倍;如设置为2000,则最大值实际是1024。
maxConnections的设置与Tomcat的运行模式有关。如果tomcat使用的是BIO,那么maxConnections的值应该与maxThreads一致;如果tomcat使用的是NIO,maxConnections值应该远大于maxThreads。
